PRODUCT DESCRIPTION

The CurveX 3 Basic is an oven recorder designed for daily use in powder
coating lines.

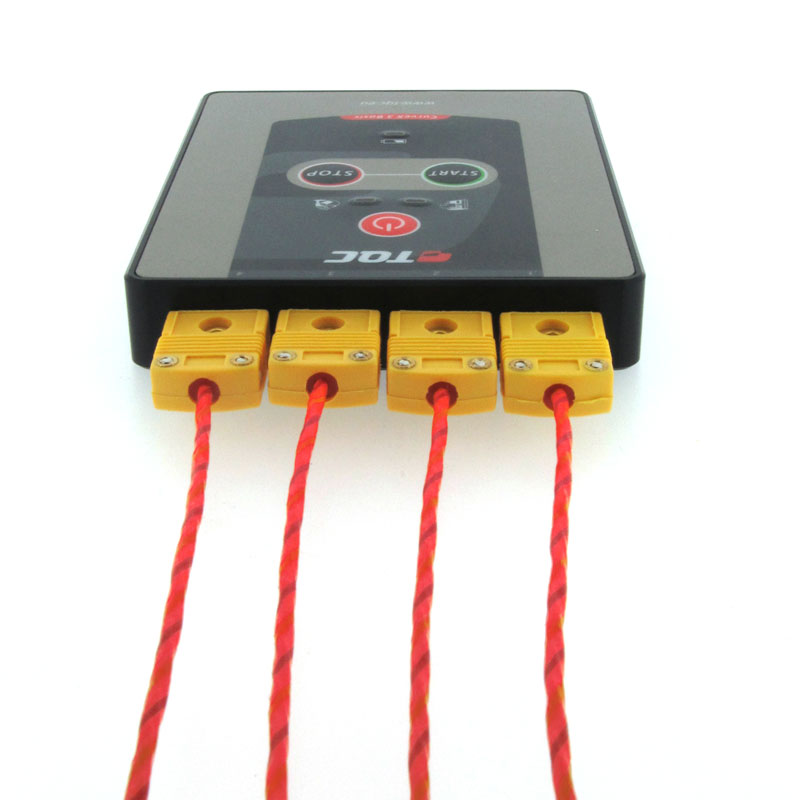

CurveX 3 Basic a 4-channel temperature data logger is built in a sturdy
machined aluminium case that fulfils the basic needs for quality control
in powder coating applications. Its ease of use and affordable price level
makes it the ideal job-coaters instrument.



TQC has a wide range of interchangeable probes and heat barriers available
that allow the CurveX 3 Basic to be used over the whole temperature range.
All CurveX insulation boxes and CurveX probes, and the single heat absorber
/ bracket can be used with the CurveX 3 Basic. (See accessory list)



FEATURES

• Operate through only 3 large buttons

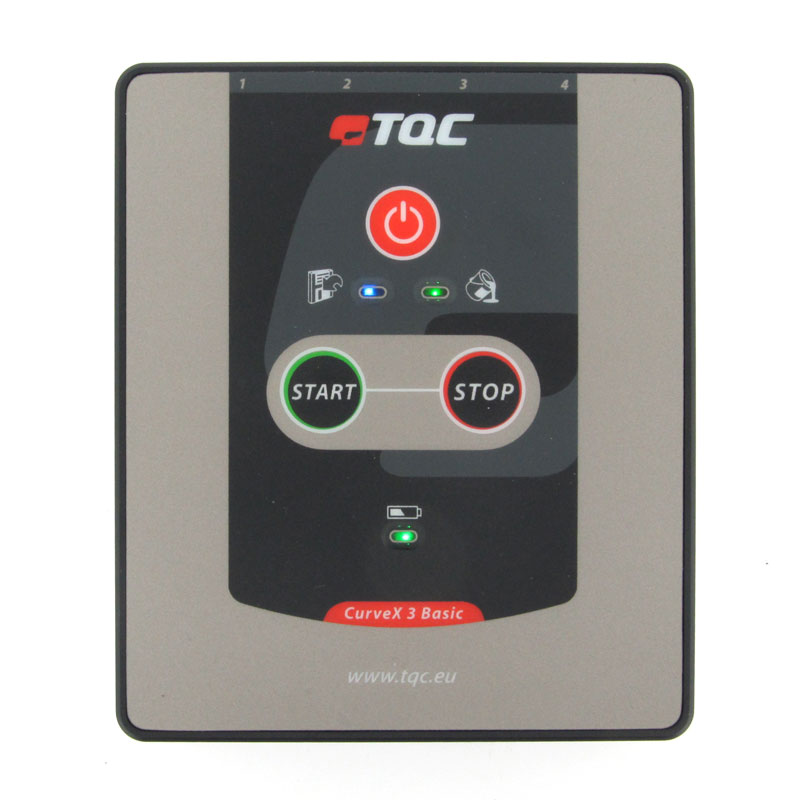

• Meaningful feedback of multi coloured LED’s

• Factory calibrated for immediate use

• Downloads data through a standard USB port

• Rechargeable battery pack through USB connector

• Large memory of max. 160.000 readings

• Memory for 10 different batches, automatically overwrites the oldest results

• Programmable “paint type” memory for immediate “pass / fail” result

• Flat design, only 16 mm, for use in low clearance ovens

• Compatible with Ideal Finish Analysis software



SCOPE OF SUPPLY

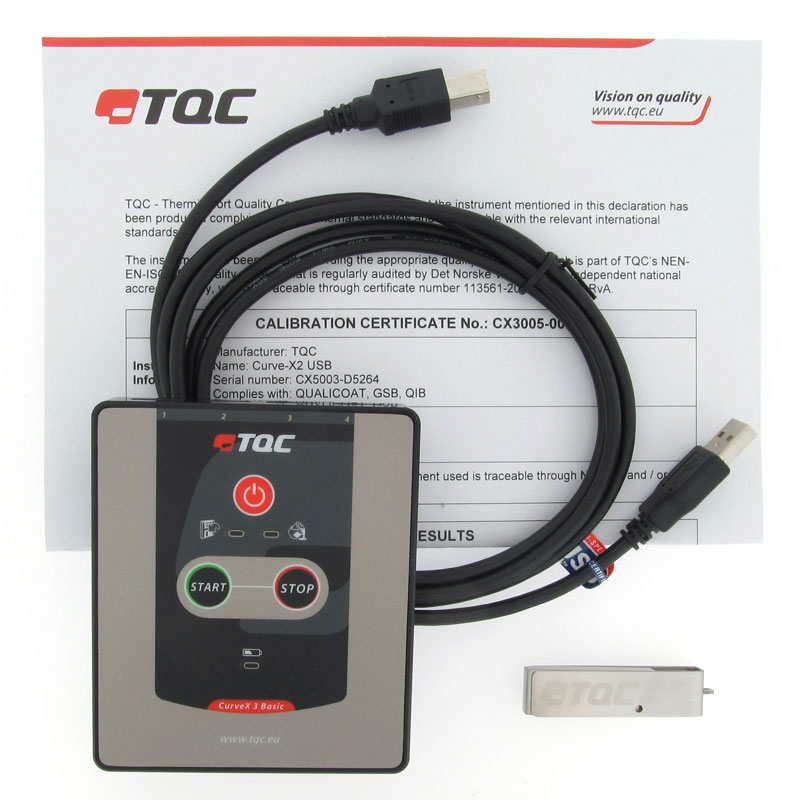

CX3005 CurveX 3 Basic Data Logger comes with:

• CX3004 CurveX 3 Basic  datalogger

• CM1105 USB Cable

• GL0103 USB Memory Stick with Ideal Finish Analysis software

• CX5010 Ideal Finish Analysis License Key

• CL0018 Factory calibrated, calibration certificate included

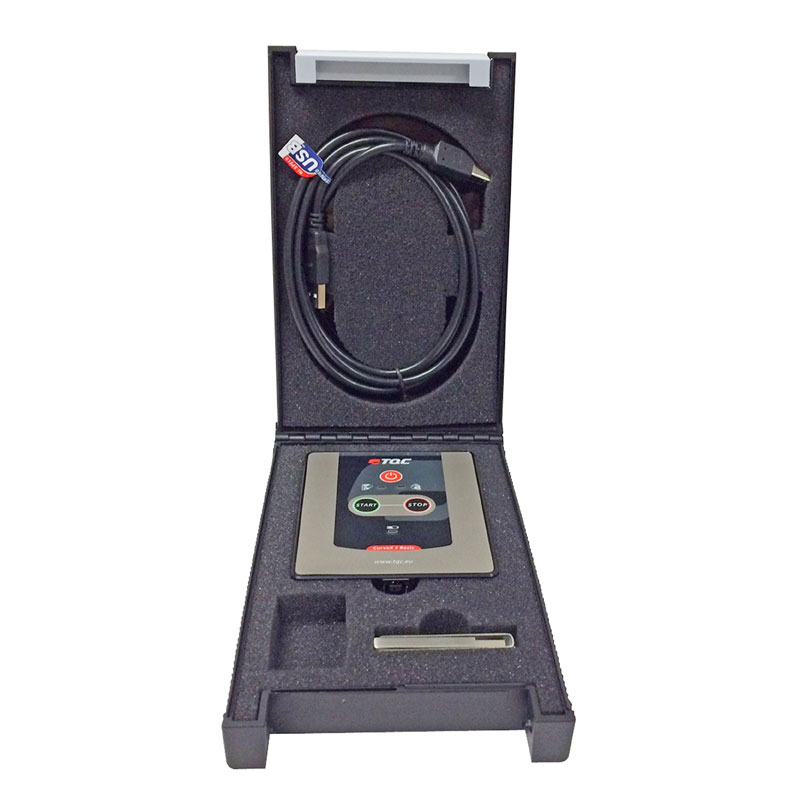

• CX3059 Small protective case



CX3010 CurveX 3 Basic Data Logger Kit comes with

• CX3004 CurveX 3 Basic  datalogger

• CM1105 USB Cable

• GL0103 USB Memory Stick with Ideal Finish Analysis software

• CX5010 Ideal Finish Analysis License Key

• CL0018 Factory calibrated, calibration certificate included

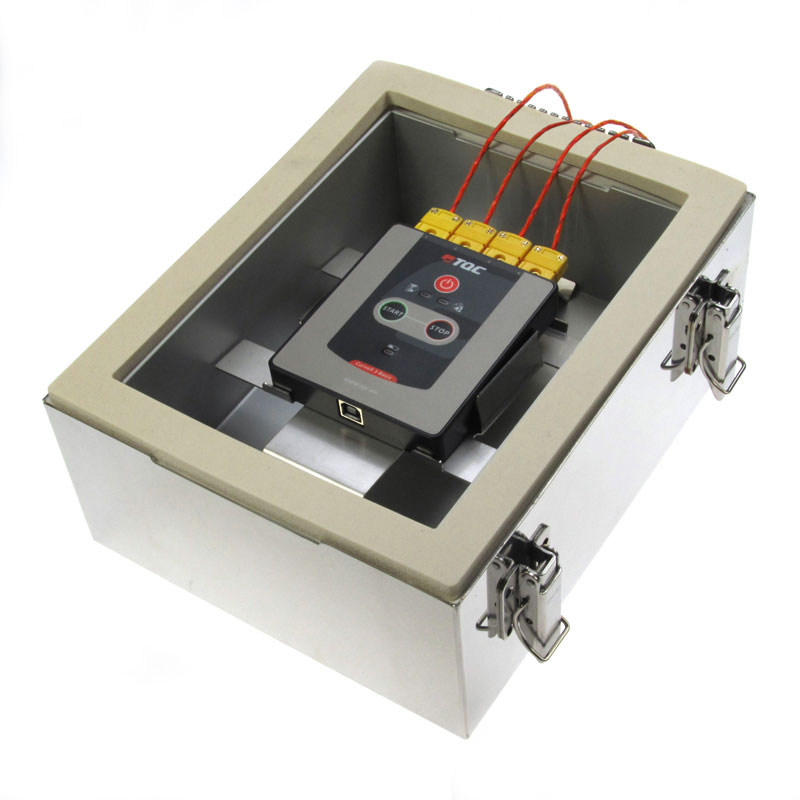

• CX2005 Insulationbox

• CX3050 Insulation box logger bracket

CX3060 Plastic Carrying Case



ORDERING INFORMATION

CX3005 CurveX 3 Basic Oven Logger

CX3010 CurveX 3 Basic Oven Logger Kit



SPECIFICATIONS

CurveX 3 Basic logger

Measuring range           : 0 °C to 500 °C / 32 °F to 932 °F

Operating temperature   : 0 °C to 60 °C / 32 °F to 140 °F

Accuracy                     : ±1 °C / 1.8 °F

Channels                     : 4

Sample interval time     : 1 s to 60 min

Memory                       : 10 batches with 16000, or 1 batch with 160000 readings

Display                        : Three multi-colour LED’s

Interface                      : USB

Housing material          : Anodised Aluminium

Dimensions (DxWxH)   : 100 x 85 x 16 mm / 3.94 x 3.35 x 0.63 inch

Power supply               : Rechargeable battery

Battery life time            : 1200 hour continuous use,  27 years in stand-by

Weight                         : 190 g / 6.7 oz.



TQC Ideal Finish Analysis software

Supported Operating Systems : Windows Vista, Windows 7 and Windows 8 / 8.1

Platform                                : 32 b or 64 b

Memory                                 : 32 MB

Required Hard Disk space      : 128 MB





USE

The CurveX 3 Basic is placed in an insulated box before it passes through the oven. The instrument measures and registers the temperature at several places of the work piece. The preset paint type specification is evaluated against the temperature over time resulting in a clear cure pass or fail. The measurements are uploaded to a PC via the oven temperature data logger‘s USB port and analysed using the Ideal Finish software program.





SPECIAL CARE

• Though robust in design, this instrument is precision-machined. Never drop it or knock it over.

• Always clean the instrument after use.

• Clean the instrument using a soft dry cloth. Never clean the instrument by any mechanical means such as a wire brush or
  abrasive paper. This may cause, just like the use of aggressive cleaning agents, permanent damage.

• Do not use compressed air to clean the instrument.

• Always keep the instrument in its case when not in use.

• We recommend annual calibration.

Batteries in carry-on baggage (aircraft cabin)



The battery employed in our CurveX 3 Basic is a generic single cell Lithium-Ion battery, 3.7V 1400mAh. The battery employed in the CurveX 3 Basic has a capacity of 5.18 Watt-hours, and is rated for

low-power use only. A protection circuitry has been applied to the CurveX 3 Basic mainboard as per best practice.



Based on US DOT regulations (49 CFR, Sec. 175.10), the CurveX 3 Basic battery satisfies all demands, most notably:

- The battery is non-replaceable for the end user and therefore does not classify as ‘spare’

- The battery is rated below 100 Watt-hours per battery

- The battery is protected from damage and short circuit



The battery is assembled into an end product and classified to be freely transported on aircraft both in carry-on and check-in luggage. When carried-on, please keep the provided product

documentation with the device in order to be able to provide regulatory agencies relevant

information about your device when requested.



TEST CONDITIONS FOR USE WITHOUT HEAT ABSORBER



Tested in combination with the Insulation Box CX2005 and Insulation Box Logger Bracket CX3050
