Küllenme Öncesi Toz Boya Kalınlık Ölçüm Cihazı - Positest PC

KÜLLENME ÖNCESİ TOZ BOYA KALINLIK ÖLÇÜM CİHAZI

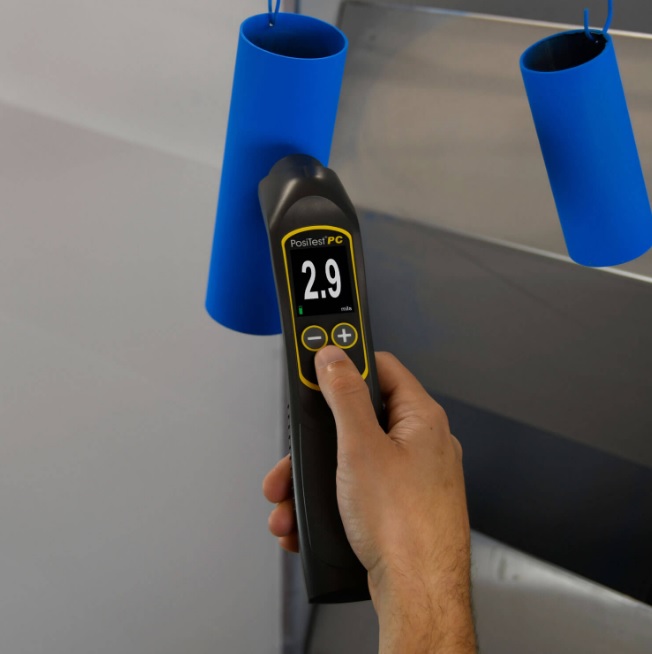

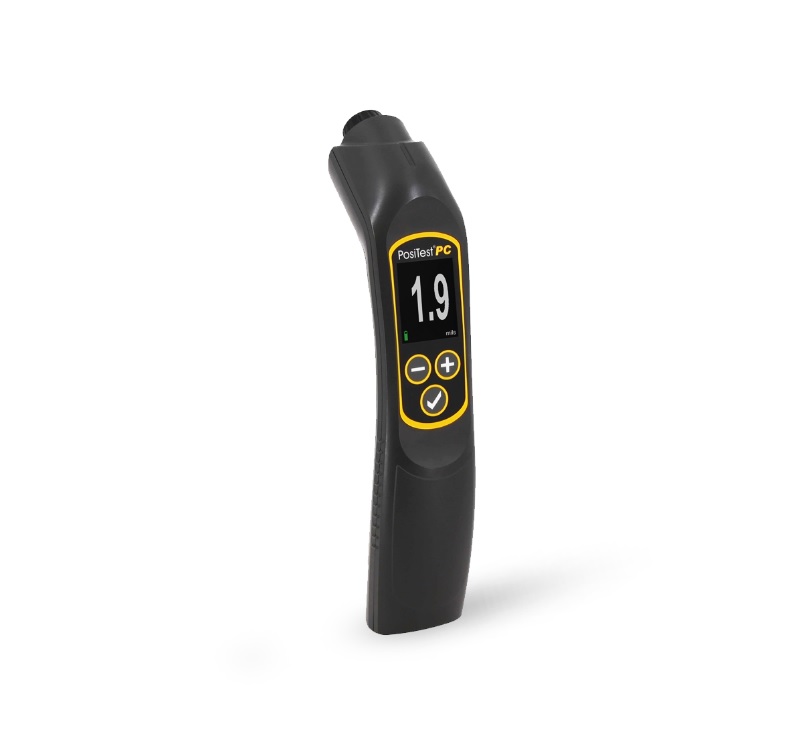

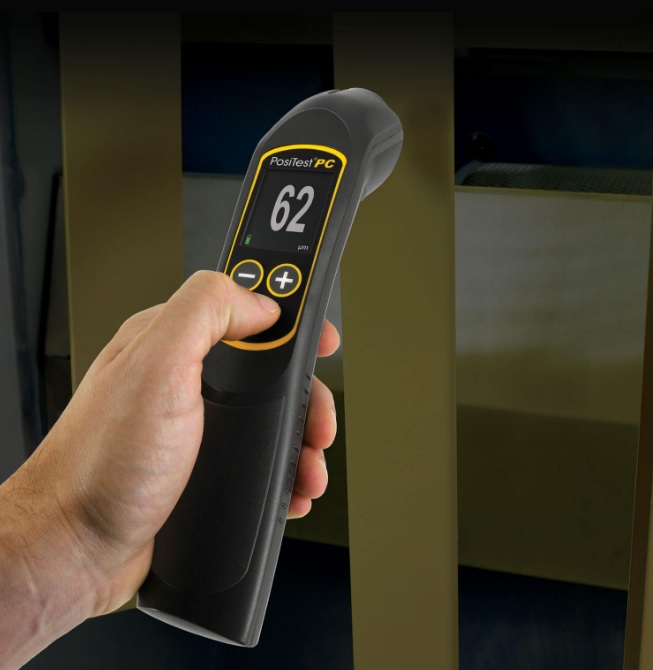

Non-contact coating thickness gage measures uncured powder
and predicts cured thickness.

Features...

Simple
Dedicated stand-alone unit is ready to measure right out of the box
Up to 4x faster measurement speed† — ideal for moving
lines and swinging parts

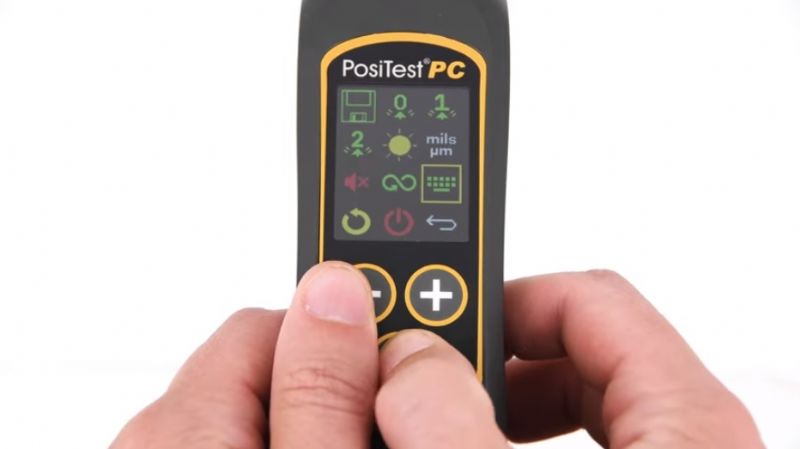

Easy-to-read digital display with a simple, icon based menu
Hand-held, battery operated Ergonomic and lightweight
No calibration adjustment required for most powders
Target Grid simultaneously displays distance to the part and
alignment, making measurements easy
RESET feature instantly restores factory settings


Durable
Solvent, acid, oil, water and dust resistant — ideal for harsh
powder coating environments

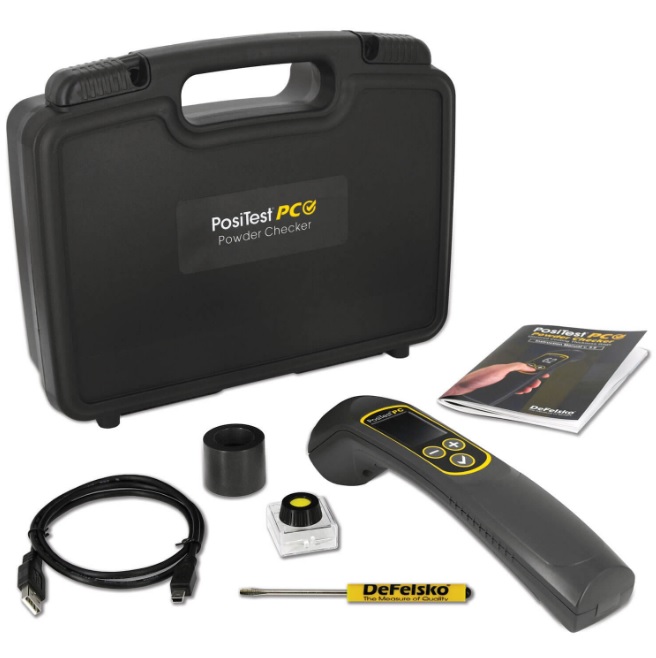

Hard-shell carrying case included
Replaceable screen protects the sensor
Two year warranty

Accurate





Conforms to ASTM D7378
Improved sensor technology allows easier measurement on small tubes,
odd shapes and moving parts
Easy 1 and 2 point calibration adjustment options with Cal Reset to improve
accuracy on unusual powders or substrates

Versatile
No cable to risk disturbing applied powder
Mils/microns switchable High contrast color display
Adjustable display brightness for optimal visibility in any environment
Toggle sound On and Off
Uses alkaline or rechargeable batteries

Powerful





Storage of 999 readings with onscreen averaging. Stored readings
can be downloaded to PosiSoft Desktop software
Scan Mode continuously takes measurements — ideal for analyzing large areas
USB Keyboard Mode emulates keystrokes to easily stream
readings to a PC or PLC
USB port for fast, simple connection to a PC and to supply continuous power
Software updates keep your instrument current
† Versus the PREVIOUS generation PosiTector PC Powder Checker


TEKNİK ÖZELLİKLER
Ölçüm Aralığı  : 20 – 110 mikron
Çözünürlük : 1 mikron
Hassasiyet  : ± 5 mikron
Ölçüm alma süresi : 2 – 3 saniye
Boya ölçüm mesafesi : 19 mm.
Ölçüm alanı : 2 mm.
